Anigmo universal low voltage LED dimmer can dim all 12V-24V lamps, LED strips and halogen lamps, including flicker-free / full-range dimming of MR16, MR11 and G4 lamps.
Most dimmers can only dim certain types of lamps/bulbs and can exhibit flicker or incomplete dimming range when dimming MR16, G4 and many other LED lamps, so be careful when choosing the right low voltage dimmer for your application.
Anigmo PWM dimmer uses the proprietary Adaptive Pulse Modification (APM) technique that was developed by our engineers and perfected over the years. This enables Anigmo PWM dimmer to dim lamps that other PWM dimmers can't.
Dimmer for all types of low voltage lamps

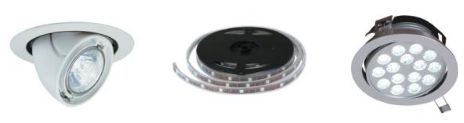

Halogen lamps | LED strips | LED lamps |
Low voltage dimmer can be used in various environments, including:
- Residential
- Offices
- Hotels
- Clubs
- Marine
- Automotive
DMS series dimmers are ideal LED dimmers for any application which calls for low voltage DC lighting for home as well as commercial and industrial applications. It is used in recreational vehicles (RV), mobile homes and other large vehicles, such as buses and trucks.
PWM LED Dimmer is ideal for use in marine environment such as ships, boats, yachts, sailboats and boat homes since it performs superbly whether powered by power supply or battery.
The electronic circuitry of the DMS dimmers is well protected with features such as:
- Overheating protection
- No-load protection
- Overload protection
- Short circuit protection
Most LED dimmers on the market do not include such protective circuitry to cut costs so be careful when considering installing dimmers in expensive boats, yachts, RVs and other luxury locations where malfunction could cause costly damages or even destroy the installation.
Protective features are especially important in the marine and RV environment, since vibrations can cause damage to wiring and without additional protection our DMS series LED dimmers offer, this can lead to dangerous situations and dissatisfied customers.

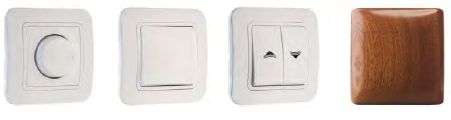

0-10V control | pushbutton | two-way pusbutton | Anigmo sensor/ touchless button |
Anigmo universal low voltage LED dimmers is not universal just because it can dim all low voltage lamps, but can also be controlled by any means, including push button, double push button (up/down), 0-10V control, potentiometer, Anigmo touchless buttons or sensors. It can also be controlled by home automation systems and can even be controlled by multiple different input devices concurrently.
Competitors products usually accept just one input option per model.
DMS 500 | DMS 850 | DMS 1200 | DMS 1700 | DMS 2500 | |
Supply input current | 5,0A | 8,5A | 12A | 17A | 25A |
Supply input voltage (nominal) | 12-24V DC | ||||
Supply input voltage (min-max) | 6-30V DC | ||||
Output current max. | 5,0A | 8,5A | 12A | 17A | 25A |
Output power max. @12V @24V |
60W 120W |
100W 200W |
144W 288W |
200W 400W |
300W 600W |
No-load proof | Yes | ||||
Short circuit protection | Yes, automatic shutoff, reversible | ||||
Overload protection | Yes, automatic shutoff, reversible | ||||
Overheating protection | Yes, reversible | ||||
Dimming mode | Adaptive Pulse Modification PWM | ||||
Operating frequency | 390Hz | ||||
Dimming range | 0-100% | ||||
Control voltage | 1-10 V DC (0V - OFF) | ||||
Control current max | 0.1mA | ||||
Control options | • 0-10 V control voltage • 100KOhm potenciometer • Open collector, Dry Dontact • Single momentary switch • Double (up/down) momentary switch |
||||
Housing dimensions | 40mm x 96mm x 20mm (ABS Plastic) | 64mm x 88mm x 26mm (Aluminum) | |||
Input and output connection | Screw terminal | Stripped wire | |||
Temperature range | -20°C to 60°C |
Last updated | Size | ||
DMS-500/850/1200 Universal PWM LED dimmer Data sheet | 03-Nov-2021 | 199 kb | |
DMS-CG Series Universal Common Ground PWM LED dimmers | 03-Nov-2021 | 200 kb | |
DMS-P Series Universal PWM LED dimmer Data sheet | 03-Nov-2021 | 199 kb | |
DMS-500/850/1200 Brochure (English) | 16-Apr-2014 | 2 Mb |
